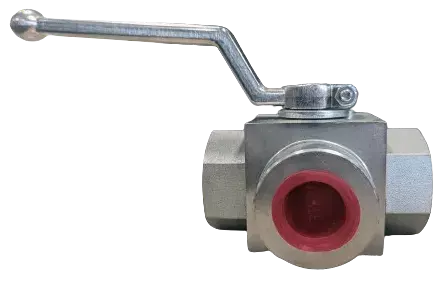

High-quality 3 way T port hydraulic ball valve with BSPP female threaded connections, designed for flexible flow control, diversion, and shut-off in hydraulic systems. The T port configuration allows flow between multiple ports, enabling efficient routing and switching of hydraulic fluid within a system.
Manufactured from carbon steel with a carbon steel ball, NBR seals, and POM ball seats, this valve delivers excellent durability, sealing performance, and resistance to wear in demanding environments. Designed for high-pressure applications, it is suitable for use across a wide range of hydraulic systems.
The valve offers different pressure ratings depending on size, making it suitable for both compact and higher flow installations. Ideal for industrial machinery, mobile plant, and agricultural equipment.
Key Features
• 3 way T port design for versatile flow control
• BSPP female threaded connections
• Quarter-turn operation for fast switching
• Carbon steel body and ball for strength and durability
• NBR seals for reliable sealing performance
• POM ball seats for low friction and long service life
• High-pressure capability up to 500 bar
• Durable construction for demanding hydraulic environments
• Inline installation
Applications
• Hydraulic flow diversion systems
• Industrial machinery
• Mobile and plant equipment
• Agricultural systems
Technical Information
• Valve type: 3 way T port
• Connection type: BSPP female
• Body material: carbon steel
• Ball material: carbon steel
• Seal material: NBR
• Ball seat: POM
• Mounting: inline
• Working pressure:
– 1/4" to 1/2": 500 bar
– 3/4" to 1": 315 bar
Cost-effective alternative to premium hydraulic valve brands. Designed for reliable, everyday performance in high-pressure hydraulic systems.
