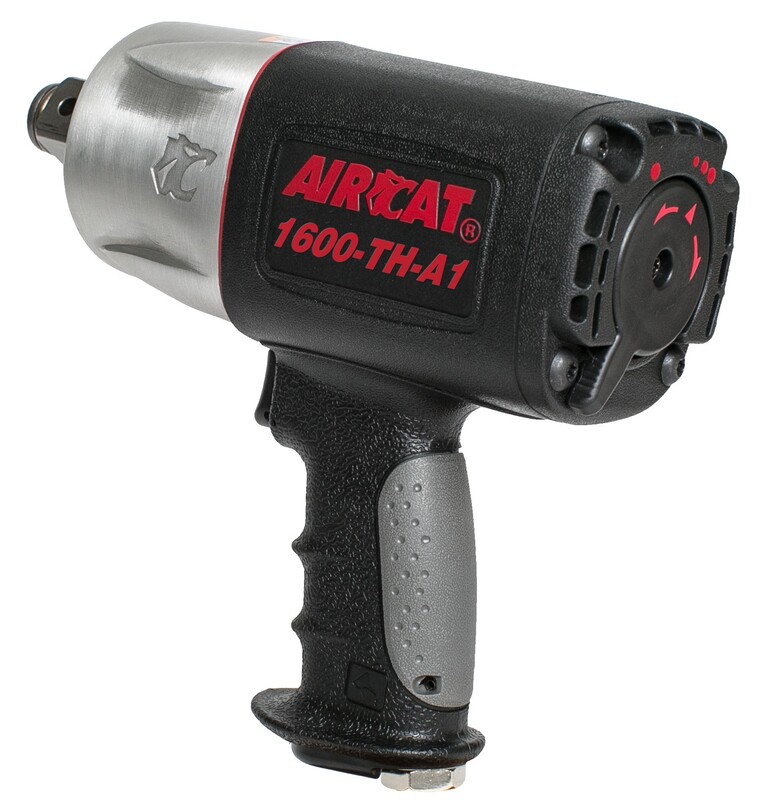

Aircat 1600-TH-A1 1” Air Impact Wrench

The Aircat 1600-TH-A1 1” air impact wrench is designed for extreme-duty applications where maximum torque and reliability are essential.

Delivering up to 2169Nm of loosening torque and 1900Nm of working torque, this tool is ideal for heavy vehicle maintenance, agricultural machinery, and large bolt assembly tasks.

Featuring a “super duty” twin hammer mechanism, the 1600-TH-A1 provides consistent, high-impact performance for demanding environments.

Despite its power, the tool maintains a relatively compact and balanced design, helping improve handling and usability during extended operation. The patented ergonomic handle enhances operator comfort, while the tuned exhaust system reduces noise levels to 86 dBA.

A flip lever allows quick switching between forward and reverse, and the combined through-hole and friction ring socket retainer provides secure socket retention with flexibility for different applications.

• 1” drive size for extreme heavy-duty applications
• Loosening torque: 2169Nm
• Working torque: 1900Nm
• Super duty twin hammer mechanism
• Quiet operation: 86 dBA
• Ergonomic handle for improved comfort
• Easy forward/reverse flip lever
• Combined through-hole and friction ring anvil
• Free speed: 4,500 rpm

Air Requirements:
• Recommended hose size: verify (listed as 3/8”, typically larger required)
• Air consumption: 10 cfm

Additional Specs:
• Impacts per minute: 1100
• Bolt capacity: 32mm
• Weight: 3.7kg
• Length: 234mm
• Vibration: 7.4 m/s²

Common applications include:
• HGV and commercial vehicle maintenance
• Agricultural machinery servicing
• Heavy industrial fastening
• Large bolt assembly work
