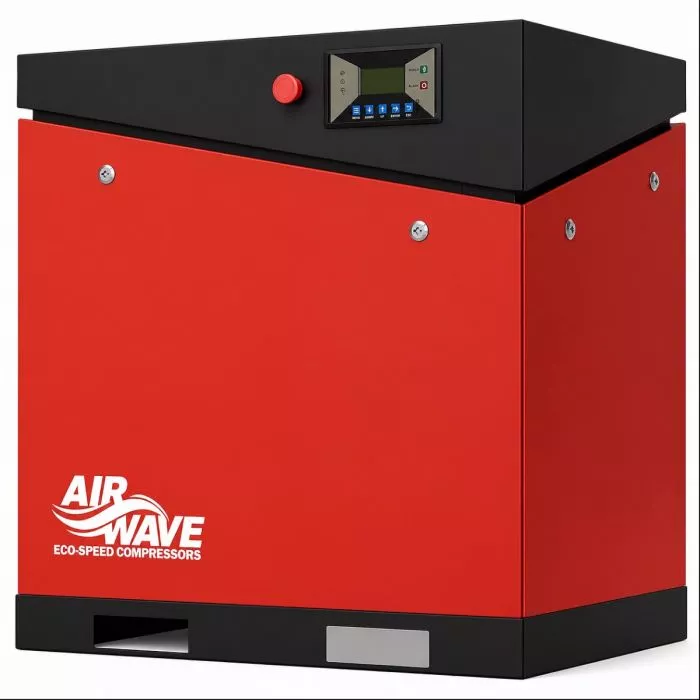

ECO-SPEED F Series
Product Details
The ECO-SPEED F Series is a range of base-mounted rotary screw air compressors designed to provide a reliable and efficient compressed air supply for workshops, engineering, manufacturing and general industrial applications.
Available with motor sizes from 5.5kW to 15kW (7.5HP to 20HP), the range provides air delivery from 30 to 83 CFM at 8 bar, allowing the compressor to be selected according to the air demand of your installation. All four models have a maximum operating pressure of 10 bar.
Available Variants:
| Model | Part Number | Motor | CFM @ 8 Bar | CFM @ 10 Bar | Max Pressure |
|---|---|---|---|---|---|
| ECO-SPEED 5.5-10-F | XLAM7.5A-10 | 5.5kW / 7.5HP | 30 CFM | 27.5 CFM | 10 Bar |
| ECO-SPEED 7.5-10-F | XLAM10A-10 | 7.5kW / 10HP | 40 CFM | 37 CFM | 10 Bar |
| ECO-SPEED 11-10-F | XLAM15A-10 | 11kW / 15HP | 60 CFM | 57 CFM | 10 Bar |
| ECO-SPEED 15-10-F | XLAM20A-10 | 15kW / 20HP | 83 CFM | 75.5 CFM | 10 Bar |
The base-mounted configuration is particularly suited to installations where an air receiver, refrigerated dryer and filtration equipment are already installed or will be selected separately. This also provides flexibility when designing a complete compressed air system around the requirements of the application.
Not sure which size you need? Contact PneuFlo Supply Co with your required air demand, operating pressure and application and we'll help you select the appropriate compressor. We can also assist with the wider compressed air installation, including air receivers, dryers, filtration, ring main pipework, hose and couplings.
Delivery Information: Due to the size and weight of our air compressors, these products are excluded from our standard free carriage offers. Please contact us to discuss delivery costs and arrangements before ordering.
