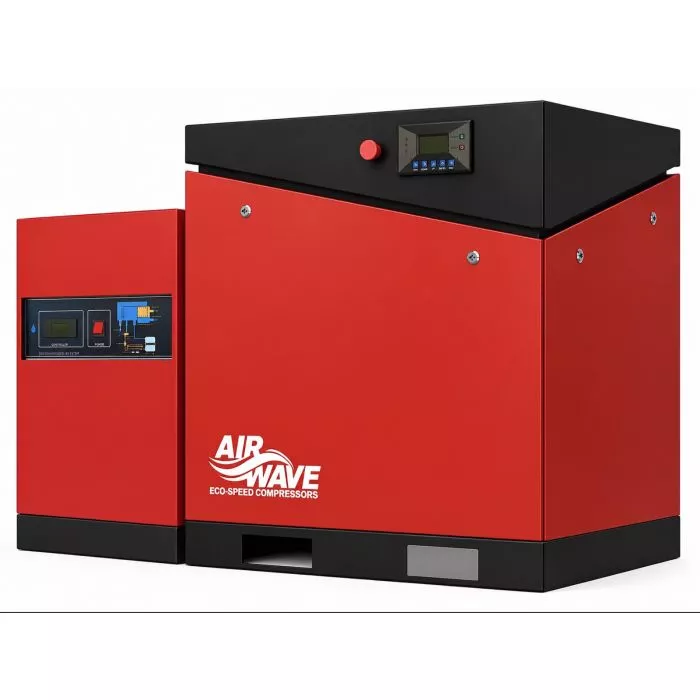

ECO-SPEED FD Series Screw Air Compressor with Integrated Dryer – 5.5kW to 15kW
Product Details
The ECO-SPEED FD Series combines the ECO-SPEED rotary screw compressor with an integrated refrigerated air dryer, providing compressed air generation and drying within a compact base-mounted package.
Designed for workshop, engineering, manufacturing and industrial compressed air applications, the FD Series is available from 5.5kW to 15kW (7.5HP to 20HP). Depending on the selected model, air delivery ranges from 30 to 83 CFM at 8 bar, with all variants rated to a maximum operating pressure of 10 bar.
The integrated dryer makes the FD Series particularly suitable where reducing moisture within the compressed air supply is required, while the base-mounted design allows the air receiver and other air treatment equipment to be selected separately according to the installation.
Available Variants:
| Model | Part Number | Motor | CFM @ 8 Bar | CFM @ 10 Bar | Max Pressure |
|---|---|---|---|---|---|
| ECO-SPEED 5.5-10-FD | XLAM7.5A-D-10 | 5.5kW / 7.5HP | 30 CFM | 27.5 CFM | 10 Bar |
| ECO-SPEED 7.5-10-FD | XLAM10A-D-10 | 7.5kW / 10HP | 40 CFM | 37 CFM | 10 Bar |
| ECO-SPEED 11-10-FD | XLAM15A-D-10 | 11kW / 15HP | 60 CFM | 57 CFM | 10 Bar |
| ECO-SPEED 15-10-FD | XLAM20A-D-10 | 15kW / 20HP | 83 CFM | 75.5 CFM | 10 Bar |
The integrated refrigerated dryer provides a more convenient packaged solution than installing a completely separate compressor and dryer, while retaining the flexibility to select an appropriately sized air receiver, filtration and distribution system.
Not sure which model is right for your application? Contact PneuFlo Supply Co with your required CFM, operating pressure and application and we'll help you select the appropriate compressor. We can also assist with air receivers, filtration, ring main pipework, hose, couplings and other compressed air system components.
Delivery Information: Due to the size and weight of our air compressors, these products are excluded from our standard free carriage offers. Please contact us to discuss delivery costs and arrangements before ordering.
