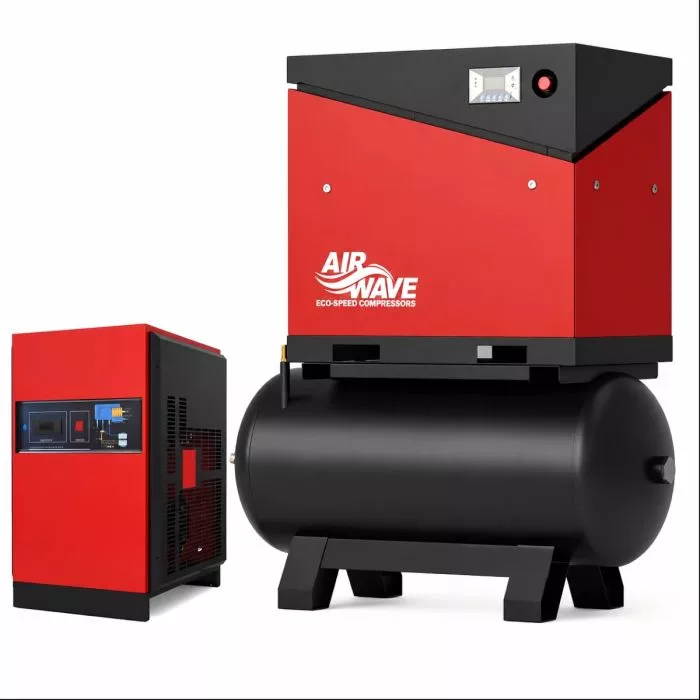

ECO-SPEED T Series Receiver Mounted Screw Air Compressor – 5.5kW to 15kW, 300L
Product Details
The ECO-SPEED T Series combines a rotary screw air compressor with a 300-litre horizontal air receiver, creating a convenient packaged compressed air solution for workshops, engineering facilities, manufacturing and general industrial applications.
Available from 5.5kW to 15kW (7.5HP to 20HP), the range offers air delivery from 30 to 83 CFM at 8 bar. All models are rated to a maximum operating pressure of 10 bar, with four sizes available to suit different compressed air demands.
Mounting the compressor directly onto the 300-litre receiver provides a compact installation footprint while giving the system stored compressed air capacity to help accommodate fluctuations in demand.
Available Variants:
| Model | Part Number | Motor | Receiver | CFM @ 8 Bar | CFM @ 10 Bar | Max Pressure |
|---|---|---|---|---|---|---|
| ECO-SPEED 5.5-10-300 | XLAMT7.5A-10-300L | 5.5kW / 7.5HP | 300L | 30 CFM | 27.5 CFM | 10 Bar |
| ECO-SPEED 7.5-10-300 | XLAMT10A-10-300L | 7.5kW / 10HP | 300L | 40 CFM | 37 CFM | 10 Bar |
| ECO-SPEED 11-10-300 | XLAMT15A-10-300L | 11kW / 15HP | 300L | 60 CFM | 57 CFM | 10 Bar |
| ECO-SPEED 15-10-300 | XLAMT20A-10-300L | 15kW / 20HP | 300L | 83 CFM | 75.5 CFM | 10 Bar |
The T Series is a good choice where a receiver-mounted compressor package is preferred but air drying and filtration are to be selected separately. This allows the downstream air treatment to be specified according to the air quality requirements of the application.
Not sure which model you require? Contact PneuFlo Supply Co with your required air demand, operating pressure and application and we'll help you select the appropriate compressor. We can also assist with refrigerated dryers, filtration, ring main pipework, hose, couplings and other compressed air system components.
Delivery Information: Due to the size and weight of our air compressors, these products are excluded from our standard free carriage offers. Please contact us to discuss delivery costs and arrangements before ordering.
