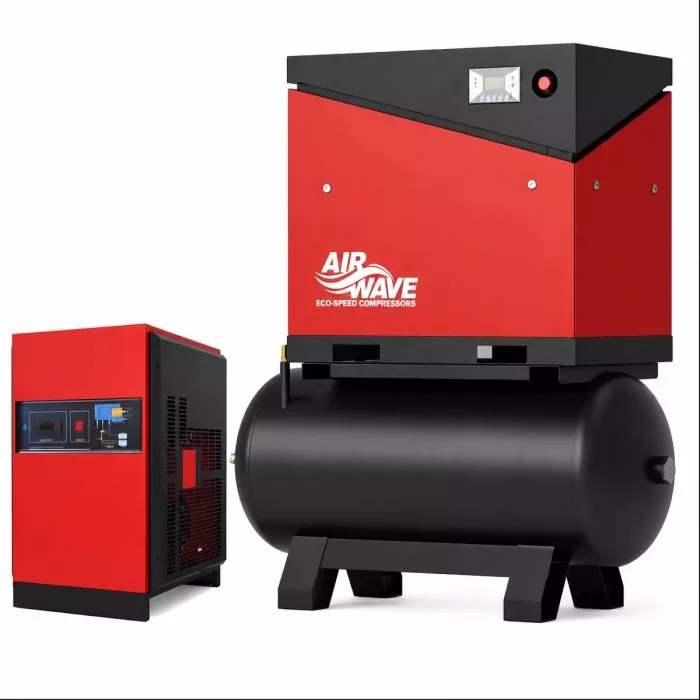

ECO-SPEED TD Series Receiver Mounted Screw Air Compressor with Dryer – 5.5kW to 15kW
Product Details
The ECO-SPEED TD Series provides a complete packaged compressed air solution, combining a rotary screw compressor, air receiver and refrigerated air dryer into a compact installation suitable for workshops, engineering, manufacturing and industrial applications.
The range is available from 5.5kW to 15kW (7.5HP to 20HP), delivering between 30 and 83 CFM at 8 bar. All models have a maximum operating pressure of 10 bar.
Both 300-litre and 350-litre receiver configurations are available within the range. The 300L versions include the required connection kit, helping provide a convenient packaged installation.
Available Variants:
| Model | Part Number | Motor | Receiver | CFM @ 8 Bar | CFM @ 10 Bar | Max Pressure |
|---|---|---|---|---|---|---|
| ECO-SPEED 5.5-10-300D | XLAMT7.5A-10-300L/TR05 | 5.5kW / 7.5HP | 300L | 30 CFM | 27.5 CFM | 10 Bar |
| ECO-SPEED 7.5-10-300D | XLAMT10A-10-300L/TR01 | 7.5kW / 10HP | 300L | 40 CFM | 37 CFM | 10 Bar |
| ECO-SPEED 5.5-10-350D | XLAMTD7.5A-10-350L | 5.5kW / 7.5HP | 350L | 30 CFM | 27.5 CFM | 10 Bar |
| ECO-SPEED 7.5-10-350D | XLAMTD10A-10-350L | 7.5kW / 10HP | 350L | 40 CFM | 37 CFM | 10 Bar |
| ECO-SPEED 11-10-300D | XLAMT15A-10-300L/TR02 | 11kW / 15HP | 300L | 60 CFM | 57 CFM | 10 Bar |
| ECO-SPEED 15-10-300D | XLAMT20A-10-300L/TR02 | 15kW / 20HP | 300L | 83 CFM | 75.5 CFM | 10 Bar |
By combining the compressor, receiver and dryer, the TD Series provides the core equipment required for a compressed air installation in one convenient package. The refrigerated dryer helps reduce moisture in the compressed air supply, while the receiver provides stored air capacity to accommodate fluctuations in system demand.
Additional compressed air filtration, condensate management and distribution pipework can then be specified according to the air quality and installation requirements of the application.
Not sure which configuration you need? Contact PneuFlo Supply Co with your required CFM, operating pressure and application and we'll help you select the appropriate compressor package. We can also assist with filtration, ring main pipework, hose, couplings and other compressed air system components.
Delivery Information: Due to the size and weight of our air compressors, these products are excluded from our standard free carriage offers. Please contact us to discuss delivery costs and arrangements before ordering.
