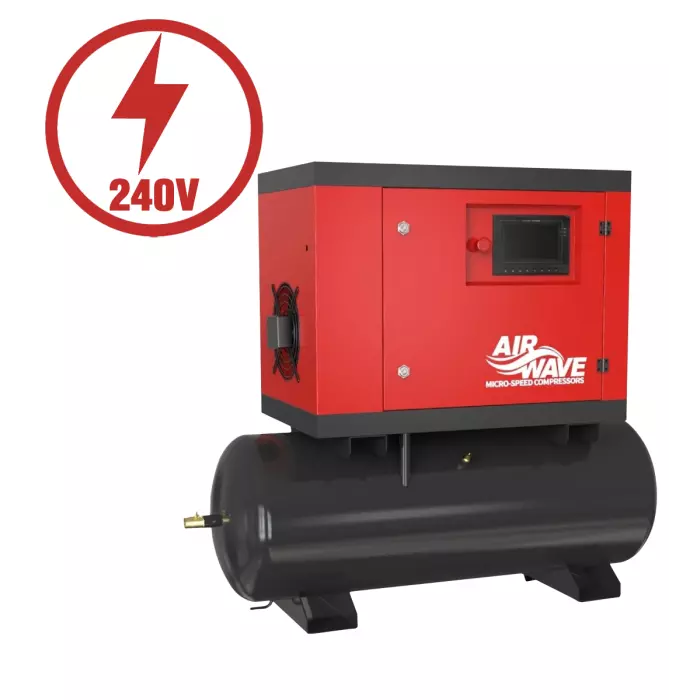

MICRO-SPEED MT Series Receiver Mounted Variable Speed Screw Air Compressor – 4kW to 5.5kW, 160L
Product Details
The MICRO-SPEED MT Series is a compact receiver-mounted variable speed screw compressor range designed for workshops, engineering facilities, garages and smaller industrial compressed air systems.
Each compressor is mounted on a 160-litre air receiver, combining compressed air generation and storage within one convenient package. This makes the MT Series particularly suitable for installations where floor space is limited or where a straightforward packaged compressor solution is preferred.
Available in 4kW / 5.5HP and 5.5kW / 7.5HP motor sizes, both capacities can be supplied for either 230V single-phase or 400V three-phase power. This gives businesses without three-phase electricity access to a compact screw compressor system while also providing conventional three-phase versions for industrial installations.
The variable speed design allows compressor output to respond to changing compressed air demand. The 4kW models provide a minimum output of 10 CFM and up to 16 CFM at 9.5 bar, while the 5.5kW models provide a minimum output of 12 CFM and up to 21 CFM at 9.5 bar.
| Model | Part Number | Motor | Supply | Receiver | Min Output | CFM @ 9.5 Bar | Pressure |
|---|---|---|---|---|---|---|---|
| MICRO-SPEED 4-10-160-230V | XLPM5.5AT-10-160-230V | 5.5HP / 4kW | 230V 1 Phase | 160L | 10 CFM | 16 CFM | 6–10 Bar |
| MICRO-SPEED 4-10-160-400V | XLPM5.5AT-10-160-400V | 5.5HP / 4kW | 400V 3 Phase | 160L | 10 CFM | 16 CFM | 6–10 Bar |
| MICRO-SPEED 5.5-10-160-230V | XLPM7.5AT-10-160-230V | 7.5HP / 5.5kW | 230V 1 Phase | 160L | 12 CFM | 21 CFM | 6–10 Bar |
| MICRO-SPEED 5.5-10-160-400V | XLPM7.5AT-10-160-400V | 7.5HP / 5.5kW | 400V 3 Phase | 160L | 12 CFM | 21 CFM | 6–10 Bar |
The integrated 160L receiver provides stored compressed air to help accommodate fluctuations in demand. Air drying and filtration can then be selected separately to suit the required air quality and application.
For help selecting the correct MICRO-SPEED compressor, contact PneuFlo Supply Co with your required airflow, pressure, electrical supply and application. We can also assist with dryers, filtration, ring main systems, hose, couplings and other compressed air equipment.
Delivery Information: Due to the size and weight of our air compressors, these products are excluded from our standard free carriage offers. Please contact us to discuss delivery costs and arrangements before ordering.
