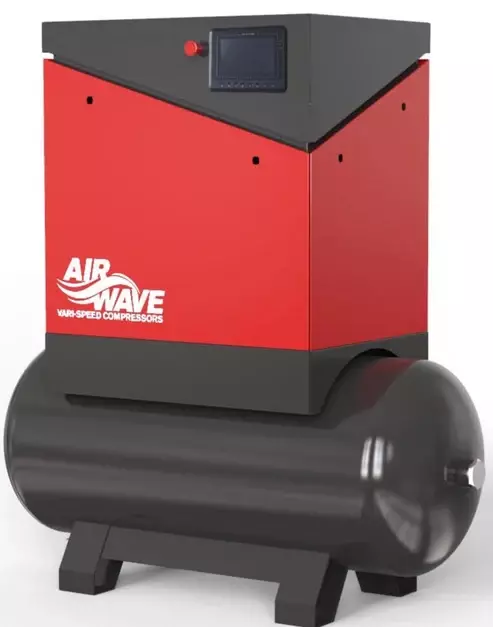

VARI-SPEED PM-T Series MK2 Receiver Mounted Variable Speed Screw Air Compressor – 7.5kW to 15kW, 300L
Product Details
The VARI-SPEED PM-T Series MK2 is a receiver-mounted variable speed screw compressor range designed for workshops, manufacturing, engineering and industrial compressed air applications with varying levels of air demand.
Each compressor is mounted on a 300-litre air receiver, combining compressed air generation and storage in a convenient packaged configuration.
Variable speed operation allows compressor output to respond to changes in compressed air demand, making the range particularly suitable for applications where consumption fluctuates throughout the working day.
Three motor sizes are available. The 7.5kW / 10HP model provides an output range of 22–40 CFM, the 11kW / 15HP model provides 34–60 CFM, and the 15kW / 20HP model provides 45–83 CFM, with the maximum figures stated at 8 bar.
| Model | Part Number | Motor | Receiver | Min Output | CFM @ 8 Bar | Pressure Range |
|---|---|---|---|---|---|---|
| VARI-SPEED 7.5-10-300 | XL-10EPMT-10-300L | 10HP / 7.5kW | 300L | 22 CFM | 40 CFM | 6–10 Bar |
| VARI-SPEED 11-10-300 | XL-15EPMT-10-300L | 15HP / 11kW | 300L | 34 CFM | 60 CFM | 6–10 Bar |
| VARI-SPEED 15-10-300 | XL-20EPMT-10-300L | 20HP / 15kW | 300L | 45 CFM | 83 CFM | 6–10 Bar |
The 300L receiver provides stored compressed air capacity to help accommodate short-term peaks and fluctuations in demand. Air drying, filtration and condensate management can then be specified separately according to the air quality requirements of the installation.
For help selecting the correct VARI-SPEED compressor, contact PneuFlo Supply Co with your required airflow, pressure and application. We can also assist with dryers, filtration, ring main pipework, hose, couplings and complete compressed air system components.
Delivery Information: Due to the size and weight of our air compressors, these products are excluded from our standard free carriage offers. Please contact us to discuss delivery costs and arrangements before ordering.
