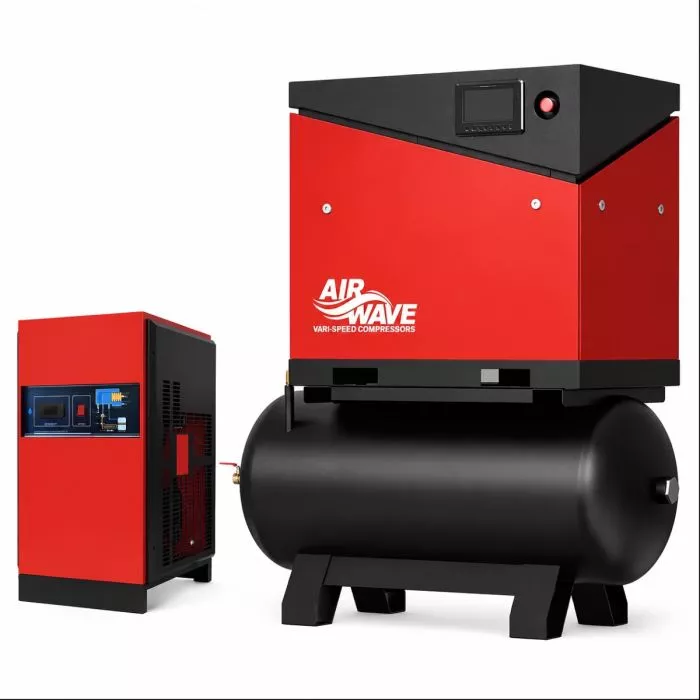

VARI-SPEED PM-TD Series MK2 Receiver Mounted Variable Speed Screw Air Compressor with Dryer – 7.5kW to 15kW
Product Details
The VARI-SPEED PM-TD Series MK2 is a packaged variable speed compressed air solution combining a screw compressor, air receiver and refrigerated air dryer. Designed for workshops, manufacturing, engineering and industrial applications, it provides compressed air generation, storage and moisture reduction within a compact package.
Variable speed operation allows compressor output to respond to changing compressed air demand, making the PM-TD Series particularly suitable for installations where air consumption varies throughout the working day.
The range is available from 7.5kW / 10HP through to 15kW / 20HP, delivering maximum outputs from 40 CFM to 83 CFM at 8 bar.
The 7.5kW / 10HP compressor is available with either a 300L or 350L receiver, while the 11kW and 15kW versions are supplied with a 300L receiver.
| Model | Part Number | Motor | Receiver | Dryer Configuration | Min Output | CFM @ 8 Bar | Pressure Range |
|---|---|---|---|---|---|---|---|
| VARI-SPEED 7.5-10-300D | XL-10EPMT-10-300L/TR01 | 10HP / 7.5kW | 300L | TR01 Dryer Package | 22 CFM | 40 CFM | 6–10 Bar |
| VARI-SPEED 7.5-10-350D | XL-10EPMTD-10-350L | 10HP / 7.5kW | 350L | Integrated Dryer Package | 22 CFM | 40 CFM | 6–10 Bar |
| VARI-SPEED 11-10-300D | XL-15EPMT-10-300L/TR02 | 15HP / 11kW | 300L | TR02 Dryer Package | 34 CFM | 60 CFM | 6–10 Bar |
| VARI-SPEED 15-10-300D | XL-20EPMT-10-300L/TR02 | 20HP / 15kW | 300L | TR02 Dryer Package | 45 CFM | 83 CFM | 6–10 Bar |
The 300D packages include the required connection kit. The 350D model uses the PMTD packaged configuration rather than a separately referenced /TR dryer.
The refrigerated dryer helps reduce moisture within the compressed air supply, while the receiver provides stored air capacity to accommodate short-term changes in demand. Additional filtration and condensate management can be selected according to the required air quality.
For help selecting the correct VARI-SPEED package, contact PneuFlo Supply Co with your required airflow, operating pressure and application. We can also assist with filtration, ring main pipework, hose, couplings and other compressed air system components.
Delivery Information: Due to the size and weight of our air compressors, these products are excluded from our standard free carriage offers. Please contact us to discuss delivery costs and arrangements before ordering.
