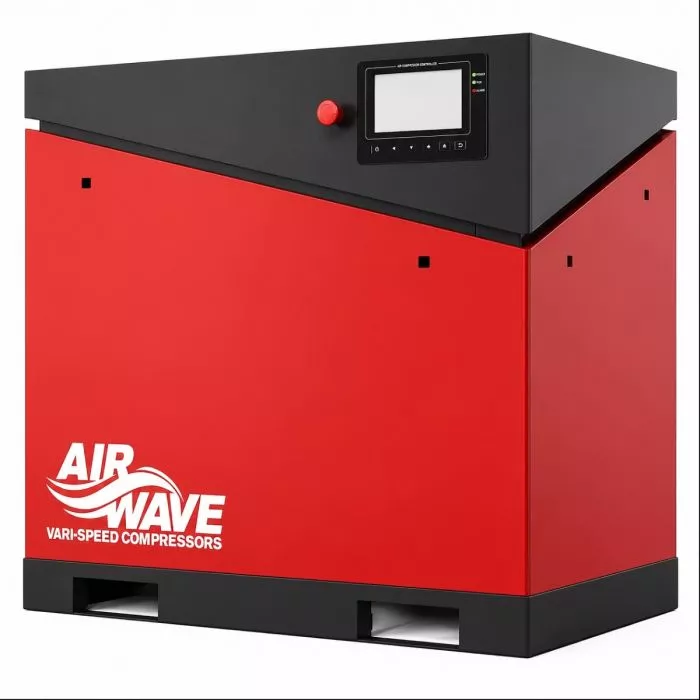

VARI-SPEED PMF Series MK2 Floor Mounted Variable Speed Screw Air Compressor – 7.5kW to 45kW
Product Details
The VARI-SPEED PMF Series MK2 is a comprehensive range of floor-mounted variable speed screw air compressors designed for industrial applications where compressed air demand can vary significantly throughout the working day.
Available in motor sizes from 7.5kW / 10HP to 45kW / 60HP, the PMF Series covers compressed air requirements from 40 CFM up to 261 CFM at 8 bar.
Variable speed operation allows compressor output to respond to changes in air demand rather than simply operating at a fixed output. This makes the range particularly suitable for manufacturing, engineering and production environments with fluctuating compressed air consumption.
The floor-mounted configuration allows the compressor to be incorporated into a compressed air installation with the appropriate air receiver, refrigerated dryer, filtration and condensate management equipment selected separately to suit the application.
| Model | Part Number | Motor | Min Output | CFM @ 8 Bar | Pressure Range |
|---|---|---|---|---|---|
| VARI-SPEED 7.5PMF | XL-10-EPM-EMC-10 | 10HP / 7.5kW | 22 CFM | 40 CFM | 6–10 Bar |
| VARI-SPEED 11PMF | XL-15-EPM-EMC-10 | 15HP / 11kW | 34 CFM | 60 CFM | 6–10 Bar |
| VARI-SPEED 15PMF | XL-20-EPM-EMC-10 | 20HP / 15kW | 45 CFM | 83 CFM | 6–10 Bar |
| VARI-SPEED 22PMF | XL-30-EPM-EMC-10 | 30HP / 22kW | 56 CFM | 123 CFM | 6–10 Bar |
| VARI-SPEED 30PMF | XL-40-EPM-EMC-10 | 40HP / 30kW | 83 CFM | 183 CFM | 6–10 Bar |
| VARI-SPEED 37PMF | XL-50-EPM-EMC-10 | 50HP / 37kW | 99 CFM | 218 CFM | 6–10 Bar |
| VARI-SPEED 45PMF | XL-60-EPM-EMC-10 | 60HP / 45kW | 118 CFM | 261 CFM | 6–10 Bar |
With such a broad output range, the PMF Series provides a scalable option for businesses looking to match compressor capacity closely to their actual compressed air requirements.
For help selecting the correct VARI-SPEED PMF compressor, contact PneuFlo Supply Co with your required airflow, operating pressure and application. We can also assist with air receivers, dryers, filtration, condensate management, ring main pipework, hose and couplings to provide the components required for a complete compressed air installation.
Delivery Information: Due to the size and weight of our air compressors, these products are excluded from our standard free carriage offers. Please contact us to discuss delivery costs and arrangements before ordering.
